Lightness, strength and flight are not compromised.
|
|
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
| Lineup |
 |
 |
 |
 |

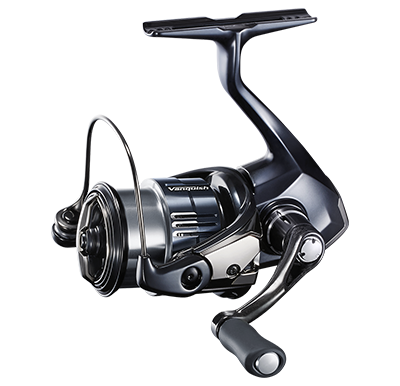

1000SSSPG
Ajing-only model.
Equipped with an
ultra-shallow groove
spool, low gear,
and 35mm short
handle, it is the
best match
for delicate fishing.
Reference target
fishing species:
Ajing, tube fishing trout |
C2000S
# 1000 series
standard model
that can handle
anything from
light salt to tube fishing
trout.
Reference target
fishing species:
Light salt in general,
tube fishing trout |
C2000SSS
C2000S ultra-shallow
groove specification
model.
For expert anglers
who use less
than 2.5lb.
Reference target
fishing species:
Ajing,
tube fishing trout |
C2000SHG
You can handle
anything from
light salt to mountain
stream trout.
# 1000 HG series
standard model.
Reference target
fishing species:
Light salt in general,
mountain stream trout |
|
|
|
|
 |
|
 |
 |
C2500SHG
Compact # 2500
with a compact
spool and rotor
mounted on the
# 2500 series body.
Best match for
light line main bass
fishing and
bream games.
Reference target
fishing species:
Finesse bass, Chinu |
C2500SXG
Compact # 2500
with a compact spool
and rotor on the
# 2500 body. Equipped
with XG gear,
the winding length
is 86 cm, which
is comparable
to 3000 MHG.
This model is for
more emphasis
on rework.
Reference target
fishing species:
Finesse bass, Chinu |
2500S
Standard for bass.
Reference target
fishing species:
bass, egging |
2500SHG
Can be used from
buses to mainstream
trout. # 2500
series HG standard.
Reference target
fishing species:
Bass, rainbow trout |
|
|
|
|
 |
|
 |
 |
C3000SDH
In response to
Egginger'senthusiastic
demands, an additional
lineup of models
dedicated to Egging
with a normal gear
ratio equipped as
standard with a
double handle.
Reference target
fishing species:
Egging |
C3000SDHHG
Double handle
standard equipment.
Egging exclusive
model.
Reference target
fishing species:
Egging |
C3000
Versatile model that
can be used for
anything from
freshwater to salt.
Reference target
fishing species:
Versatile |
C3000MHG
Versatile high gear
model that can
be used for
anything from
freshwater to salt.
Reference target
fishing species:
Versatile |
|
|
|
|
 |
 |
 |
 |
C3000XG
# 2500 size fastest
hoisting model
For fishing that
requires high speed
hoisting.
Reference target
fishing species:
Versatile |
3000MHG
Sea bass standard
model. The # 4000
series body is equipped
with a compact
spool and rotor,
which requires
powerful winding
of # 3000 and # 4000,
and is for anglers
who want a
thorough weight
reduction of tackles.
Reference target
fishing species:
sea bass, cherry salmon |
4000MHG
Best match for
sea bass, cherry
salmon and light
jigging in large rivers.
Recommended
for surf anglers
who are worried
about the weight
of the XG.
Reference target
fishing species:
sea bass,
cherry salmon,
light jigging |
4000XG
Surf, blackfin seabass
standard model.
Also supports
light shore
jigging and casting.
Reference target
fishing species:
surf, blackfin seabass,
light shore jigging,
casting |
|
|
|
|
 |
|
|
|
C5000HG
Equipped with round
handle knob, aluminum
handle shank, and
carbon cross
drag washer.
The best HG model
for anglers who
want a little more
power, although it
doesn't require
as much winding
speed as the XG.
Reference target
fishing species:
Blackfin seabass,
light shore jigging,
casting |
C5000XG
A model exclusively
for light shore
jigging and shore
casting with a round
handle knob, aluminum
handle shank,
and carbon cross
drag washer.
Reference target
fishing species:
Blackfin seabass,
light shore jigging,
casting |
|
|
|
|
|
|
|
| Feature |
 |
 |
 |
 |
NEW CI4 + handle
By adopting Shimano's
original lightweight
carbon material CI4 +
for the handle shank,
it is overwhelmingly
lighter than a
metal handle.
Furthermore,
by adopting
a lightweight titanium
handle shaft for the
handle shaft,
we have achieved
a weight
reduction of 3 g for the
# 2500 handle set
and 7 g
for the # 4000 handle
set compared to the
previous model
CI4 + handle. |
Magnum Light Rotor
A magnum light rotor
that uses a rotor
structurethat is
asymmetrical to
the left and right,
and achieves a
different level
of rotational lightness
in search of improved
operability and
sensitivity. Furthermore,
we have succeeded
in reducing the rotational
inertia by
reducing the weight
of the line roller,
making the bale
titanium, and optimally
arranging the rotor
wall thickness. |
Titanium one-piece Bail
Made of lightweight
and strong titanium,
it is equipped
with a one-piece
bail manufactured
by integral molding
without any seams.
It looks beautiful and
is trouble-free. |
HAGANE body
Magnesium alloy
is used for the body
as well as STELLA.
We have succeeded
in maintaining high
rigidity while achieving
weight reduction. |
|
|
|
|
 |
 |
 |
 |
HAGANE gear
A drive gear that
presses a metal
block with a pressure
of about 200 tons
and finishes
it with micron
accuracy without
cutting. A unique
technology called
precision cold
forging produces
high-precision
and strong gears,
enabling a smooth
winding feeling.
NEW Vanquish
follows the latest
HAGANE gear
installed in STELLA.
Gear strength
is greatly improved
compared to the
previous model. |
X protect
By combining the
water-repellent effect
and the labyrinth structure,
waterproof performance
that can withstand water
pressure is realized
without impairing the
lightness of rotation.
The mounting location
is the line roller part
and the body (roller clutch)
part. In particular, the
durability of line rollers
is more than five times
higher (compared to our
conventional products). |
Long stroke spool
The long stroke spool
is installed for the first
time other than STELLA
to improve long-distance
casting performance.
Achieved a 4% increase
in flight distance compared
to the C3000 size.
(According to our flight
distance comparison test
in the dome) |
Silent drive
The basic design
of the entire body
and drive-related
parts have been
reviewed one
by one, and minute
backlash, gaps,
and shaking between
parts have been
thoroughly eliminated
in every detail.
There are various
areas to be improved,
such as drive gears,
worm shafts, worm
shaft pins,and worm
shaft gears.
A new dimension
of smooth rotation
performance
and quietness have
been achieved. |
|
|
|
|
 |
 |
 |
 |
Micro Module Gear II
Micro module gear II
evolved by the most
advanced tooth
surface design and
manufacturing
technology unique
to Shimano.
We reviewed
the design
of each gear
tooth and each
tooth surface to
pursue the ideal
tooth shape.
We have also
achieved
a reduction in noise
and an improvement
in smooth gear feeling. |
Low friction roller clutch
NEW Vanquish is
equipped with a
low friction and
compact roller clutch.
The resistance
is suppressed
and the rotation
is lighter than the
conventional model. |
Newly designed bale
opening and closing
mechanism
Pursuing a smooth
feeling when opening.
Wide opening
and closing angle
and improved
feathering.
It also prevents
unexpected
bale return. |
New shape line clip
Uses a new shape clip
that is easy to remove
and has improved
holding power.
We support a wide
range from Ester
No. 0.2 to 40 pounds
of fluorocarbon. |
|
|
|
|
 |
|
|
|
Use of washers properly
No. 1000 to No. 4000
are made of felt with
a smooth start,
and No. C5000
is made of cross
carbon washer with
an emphasis
on durability. |
|
|
|
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity
Nylon Line (lb-m)
Fluorocarbon Line(lb-m)
PE Line(PE-m) |
Bearing |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| BB |
roller |
| 1000SSSPG |
4.6 |
58 |
145 |
3.0 |
2lb-100m 3lb-60m
2lb-80m 3lb-55m
PE0.3-120m PE0.4-90m
|
7/1 |
JPY48,906 |
03949 |
 |
| C2000S |
5.1 |
69 |
145 |
3.0 |
3lb-125m 4lb-100m
5lb-75m
3lb-110m 4lb-85m
5lb-65m
PE0.6-150m PE0.8-110m
PE1-80m |
7/1 |
JPY48,906 |
03950 |
|
| C2000SSS |
5.1 |
69 |
145 |
3.0 |
2lb-115m 2.5lb-100m
3lb-70m
2lb-90m 2.5lb-80m
3lb-65m
PE0.3-140m PE0.4-100m
PE0.6-80m |
7/1 |
JPY48,906 |
03951 |
|
| C2000SHG |
6.1 |
82 |
145 |
3.0 |
3lb-125m 4lb-100m
5lb-75m
3lb-110m 4lb-85m
5lb-65m
PE0.6-150m PE0.8-110m
PE1-80m |
7/1 |
JPY48,906 |
03952 |
|
| C2500SHG |
6.0 |
81 |
155 |
3.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
7/1 |
JPY49,335 |
03954 |
|
| C2500SXG |
6.4 |
86 |
155 |
3.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
7/1 |
JPY49,335 |
04164 |
|
| 2500S |
5.3 |
78 |
165 |
4.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
9/1 |
JPY49,764 |
03955 |
|
| 2500SHG |
6.0 |
89 |
165 |
4.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
11/1 |
JPY49,764 |
03956 |
|
| C3000SDH |
5.3 |
78 |
175 |
9.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
13/1 |
JPY50,622 |
04165 |
|
| C3000SDHHG |
6.0 |
89 |
175 |
9.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
13/1 |
JPY50,622 |
03959 |
|
| C3000 |
5.3 |
78 |
170 |
9.0 |
10lb-180m 12lb-150m
16lb-100m
10lb-160m 12lb-130m
16lb-100m
PE1-400m PE1.5-270m
PE2-200m |
11/1 |
JPY49,764 |
03957 |
|
| C3000MHG |
6.0 |
89 |
170 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE1-190m PE1.2-150m
PE1.5-120m |
7/1 |
JPY49,764 |
03958 |
|
| C3000XG |
6.4 |
94 |
170 |
9.0 |
10lb-180m 12lb-150m
16lb-100m
10lb-160m 12lb-130m
16lb-100m
PE1-400m PE1.5-270m
PE2-200m |
11/1 |
JPY49,764 |
03960 |
|
| 3000MHG |
5.8 |
86 |
185 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE1-190m PE1.2-150m
PE1.5-120m |
11/1 |
JPY50,622 |
03961 |
|
| 4000MHG |
5.8 |
95 |
205 |
11.0 |
10lb-160m 12lb-120m
16lb-90m
12lb-110m 16lb-90m
20lb-65m
PE1.2-250m PE1.5-200m
PE2-150m |
11/1 |
JPY50,622 |
03962 |
|
| 4000XG |
6.2 |
101 |
200 |
11.0 |
14lb-170m 16lb-150m
20lb-125m
12lb-190m 16lb-145m
20lb-115m
PE1-490m PE1.5-320m
PE2-240m |
11/1 |
JPY50,622 |
03963 |
|
| C5000HG |
5.8 |
95 |
220 |
11.0 |
16lb-190m 20lb-150m
22lb-125m
16lb-170m 20lb-135m
22lb-115m
PE1.5-400m PE2-300m
PE3-200m |
11/1 |
JPY51,308 |
04166 |
|
| C5000XG |
6.2 |
101 |
220 |
11.0 |
16lb-190m 20lb-150m
22lb-125m
16lb-170m 20lb-135m
22lb-115m
PE1.5-400m PE2-300m
PE3-200m |
11/1 |
JPY51,308 |
03964 |
|
* XG = Extra High Gear Specification, HG = High Gear Specification, PG
= Power Gear Specification,
SSS = Special Shallow Pool Specification, S = Shallow Pool Specification,
M = Medium Deep Spool Specification, DH = Double Handle Specification, C = Compact Body Meaning is.
* There is no stopper switching mechanism. |
|
|
|
