Both strength and sensitivity!
Appeared full of the latest technology

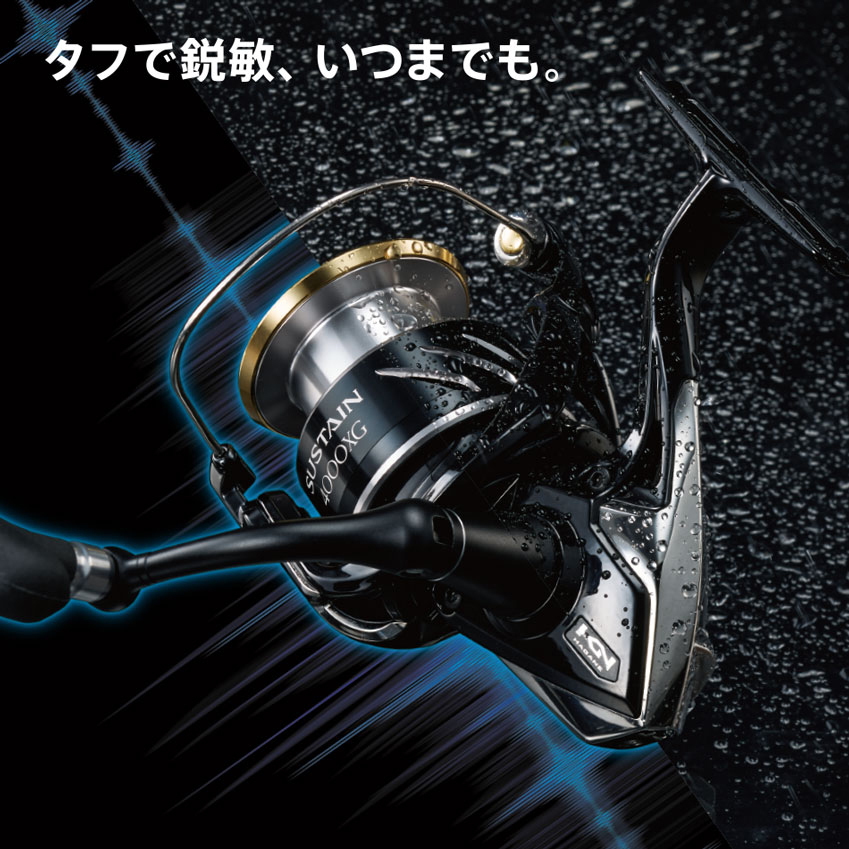

SUSTAIN

"SUSTAIN" is born with the concept
of strength and sensitivity! The latest
technologies such as [HAGANE gear],
[HAGANE body] that shape the strength,
and [NEW Magnum light rotor] that
realizes high sensitivity are generously
introduced. Furthermore, by ensuring
high waterproof performance with
[X Protect], you can enjoy
high-dimensional sensitivity, rigidity,
and comfortable usability for a long time.
A lineup of 4 items that are active
in a wide range of fields.

Technical characteristics

Feature


HAGANE GEAR A drive gear that presses a metal block at high pressure and finishes it with micron accuracy without cutting the tooth surface. The unique technology of precision cold forgingproduces high-precision, high-strength gears, enabling a smooth winding feeling.	X-SHIP Larger drive gear diameter, optimal pinion gear placement,and 2-point support with pinion gear bearings. By strengthening the meshing of the gears by these, the winding force is maximized while maintaining a light reeling. It enables powerful fights while conveying changing underwater information in detail.	HAGANE BODY Lightweight and highly rigid metal body such as aluminum and magnesium firmly suppresses bending, distortion and twisting of the reel. Protects delicate gear engagement and enables smooth reeling.	X protect Waterproof structure with water repellent treatment and labyrinth structure In addition to water repellent treatment, Shimano's tough waterproof structure uses a labyrinth structure that suppresses the ingress of water. Solves the difficult problem of improving the waterproof effect without increasing the rotation resistance. In addition, since it uses a non-contact type seal, it does not wear and the waterproof effect lasts for a long time. Due to its light rotation, it can be used in the line roller section, and the durability of the line roller bearing is greatly improved in addition to the body section.


NEW Magnum Light Rotor Rotational inertia up to 14% down & rigidity up to 30% up NEW rotor that realizes a different dimension of rotation lightness. Changed the symmetrical structure to an asymmetric structure. The "bale return mechanism" that was assembled on the line roller side is attached and transplanted to the cam side. We have succeeded in reducing the inertia of the line roller by up to about 14% by reducing the weight of the line roller, making the bale titanium, and optimally arranging the rotor wall thickness. Rotor rigidity on the line roller side has been increased by up to 30% compared to conventional products! * Numbers in the text are calculated using the 16 Vanquish # 2500 series.	Carbon cloth washer The most durable drag washer material A washer material with extremely high durability, with very little change in drag characteristics due to frictional heat due to high load use. The start is excellent even with a light load.	G free body The worm shaft s placed above the drive gear, and a G-free body with the center of gravity close to the hand is adopted. The lightweight self-weight is made to feel even lighter at the experience level, enabling aggressive fishing with excellent operability.	Large diameter drag knob Equipped with a large diameter type drag knob. The operability is high, and quick and fine drag adjustment is possible even in the middle of the fight, realizing the fight as the angler wants.


RIGID SUPPORT DRAG By supporting the spool with the main shaft and two bearings in the spool, the fluttering of the spool is suppressed and stable and smooth drag performance is demonstrated.	Titanium one-piece bail Made of lightweight and strong titanium, it is equipped with a one-piece veil manufactured by integral molding without any seams. It looks beautiful and is trouble-free.

Specification table

Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)	Line capacity Nylon Line (lb-m) Fluorocarbon Line(lb-m) PE Line(PE-m)	Bearing		Catalog Price	Price [JPY]	Product Code	Parts Scheme
Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)		BB	roller	Catalog Price	Price [JPY]	Product Code	Parts Scheme

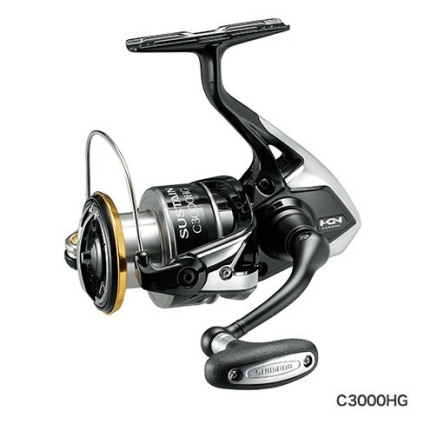

C3000HG	6.0	88	225	9.0	10lb-180m 12lb-150m 16lb-100m 10lb-160m 12lb-130m 16lb-100m PE 1-400m PE 1.5-270m PE 2-180m	8/1		36,000	JPY28,512	03759
3000XG	6.2	91	235	9.0	10lb-180m 12lb-150m 16lb-100m 10lb-160m 12lb-130m 16lb-100m PE 1-400m PE 1.5-270m PE 2-180m	8/1		36,000	JPY28,512	03760
4000XG	6.2	99	285	11.0	14lb-170m 16lb-150m 20lb-125m 12lb-190m 16lb-145m 20lb-115m PE 1-500m PE 1.5-320m PE 2-210m	8/1		37,000	JPY29,304	03761
C5000XG	6.2	103	285	11.0	16lb-190m 20lb-150m 22lb-125m 16lb-170m 20lb-135m 22lb-115m PE 1.5-420m PE 2-300m PE 3-190m	8/1		37,000	JPY29,304	03762
* HG = high gear specification, XG = extra high gear specification, C = compact body. * The maximum hoisting length is calculated based on the outermost diameter of the brim in front of the spool. * The C5000XG spool does not have a line clip.
