Technology details

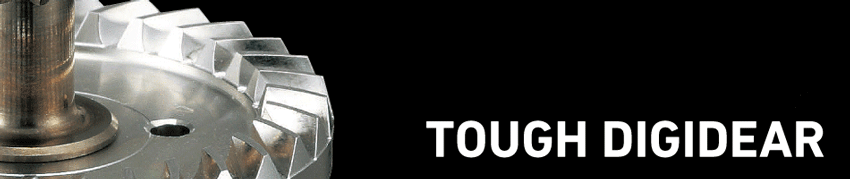

The trinity element (design concept, processing technology, gear material) is indispensable
for the drive gear, which is the most important part of the reel. Tough DigiGear is a further
evolution of the conventional DigiGear II. It is the latest design concept that carefully takes
into account the effect on the meshing caused by the unexpected force. And what supports
the design concept is a unique processing technology called "cold forging + machine cut".
The ideal gear is realized by applying ultra-precision machine cut to the material finished
with high strength by cold forging. Achieves infinite noiseless rotation and accurately responds
to the delicate feeling of the angler's fingertips. "Ultra duralumin" with high tensile strength
and durability is used for the gear material. By combining these three elements, we have
completed a tough digital gear that has precision and durability that does not overlook even
the slightest error, and has obtained rotational performance and rotational durability
that are several steps higher. Tough Digi Gear evolves the sensitivity of the reel
and also the fishing itself.


For throwing fishing only. It is an extremely special
spinning reel that has refined material engineering
and researched the ultimate form of lightness and
flight distance. It has a wide caliber and a unique
spool shape that inclines forward to increase
the flight distance, and the spool is projected more
to reduce the load of line emission to increase
the stroke amount. At the same time, it was also
a genre in which the technology of devising
measures against water and salt that inevitably invaded theinterior of the engine, parts and bodies that were
significantly lighter, was required. Under these circumstances, it is no exaggeration to say that the equipment of

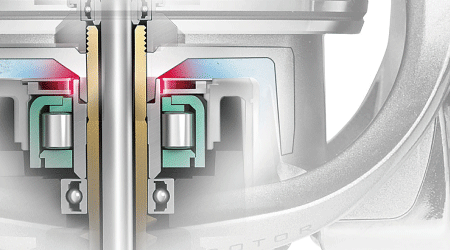

"Magshield", which is incorporated as awaterproof and dustproof "wall" today, was born from a revolutionary progress
in this genre. The center of the "Mag Shield" set to surround the inside of the rotor is "Mag Oil", which has the property
of reacting to magnetic force, born from the shieldtechnology of space suits. The smoothness due to the oil keeps
the sense of rotation with zero friction while throwing, rusting (searching), and rolling. The fact that an oil film made
of "mag oil" continues to protectseawater and dust from entering the engine inside the rotor, which is constantly winding
the handle. Itprotects the inside with the goal of universality. The more you roll it up and the more you use it,
the more you can experience its abilities.

* Line roller section

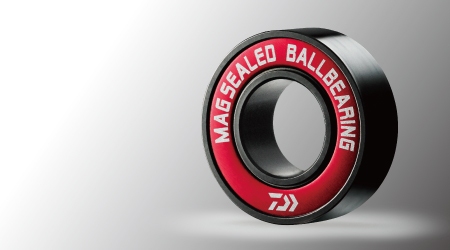

The revolution in endurance technology is to ball bearings
small parts that have a significant impact on reel rotation.
DAIWA succeeded in making the ball bearing itself
a mag shield for the first time in the world with its
own technology. The magnetic liquid wall prevents water
and foreign matter from entering the ball bearing,
maintaining the original light and smooth performance
of the ball bearing, without the help of packing, etc., rust,
salt shavings, and abnormal noise. Is greatly eliminated. It has dramatically improved waterproofness and durability,
making it possible to maintain initial performance for a long period of time.


An air rotor with an epoch-making structure that can be called the "rotor revolution
"Optimal rim structure improves rotor durability by distributing the load. As a result,
the weight is reduced by about 15% at the same time with the same strength.
By improving the rotor balance, it also contributes to further
improvement of the rotation feel.


It is a carbon resin woven with carbon fiber at high density, and has the
characteristics of being light, strong, and resistant to corrosion. A material
that makes the impossible possible by exceeding magnesium in weight
specific strength. It is used for main parts such as the body and rotor,
and contributes to the realization of the antinomy of high rigidity and light weight.

Functions / specifications Features
Aluminum machine cut handle
High-rigidity machine-cut handle that provides a stable winding feeling.
Folding type with excellent portability.
Duralumin forged machine cut tough digital gear by Daiwa's original digital design
technology and high precision machine cut processing creates a smooth
and powerful retrieve feeling.
Crosswrap Accurate winding is an important factor that reduces line troubles. "Cross wrap"
adopts a twill winding method with a large winding thread angle, and is a method
of cross winding to prevent the line from biting into the spool winding part and
the thread from shifting. Especially when using fine yarn or PE line, the reduction
of line trouble is remarkable, and at the same time, comfortable flight is realized.
AIRBAIL The smooth bale shape with no unevenness that allows the line to flow
to the line roller dramatically reduces thread rattling trouble. Furthermore,
by making it a hollow structure, the weight is not changed and
the strength is greatly increased.
Twist BusterU By taping the line roller and rolling the line, the thread twist generated
by the rotation of the rotor is offset. The thread twist, which is said
to be the fate of spinning reels, has been largely eliminated. Achieve
comfortable fishing by drastically reducing line troubles.
Shower washable Shower washable Can be washed with running water.
(Maintenance according to the instruction manual is required after cleaning)
Cast lock
Manual return
When the bale is opened during casting, the rotor rotation is locked to prevent
accidental bale reversal during casting. In consideration of safety, the bale
will be returned manually by a manual return method.

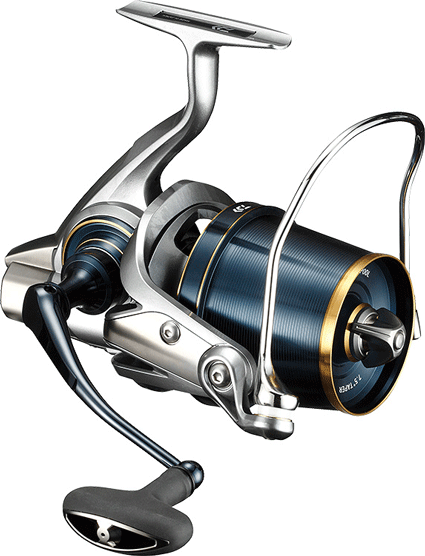

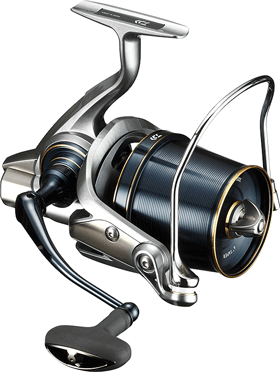

Specification table
Handle 1
Line capacity
PE Line(PE-m)
Bearing Price
BB roller
HG 05PE 4.9 88 395 15.0
PE 0.3-300m
PE 0.5-250m

10/1 JPY91,675 00067001
06PE 4.1 79 400 15.0
PE 0.6-250m
PE 0.8-200m

10/1 JPY91,675 00067002
LG 06PE 3.5 68 400 15.0
PE 0.6-250m
PE 0.8-200m

10/1 JPY91,675 00067003
